Creating a Fabric Hinge
Learn how to join chipboard pieces with fabric, reinforce the hinge, and install the lining so the finished hinge opens and closes smoothly.
What you'll learn
Learn how to space chipboard pieces on a continuous exterior fabric, wrap the outside edges, reinforce the moving joints with interfacing, and install an interior lining that bends cleanly without separating.
Step 1
Position the Boards on the Exterior Fabric

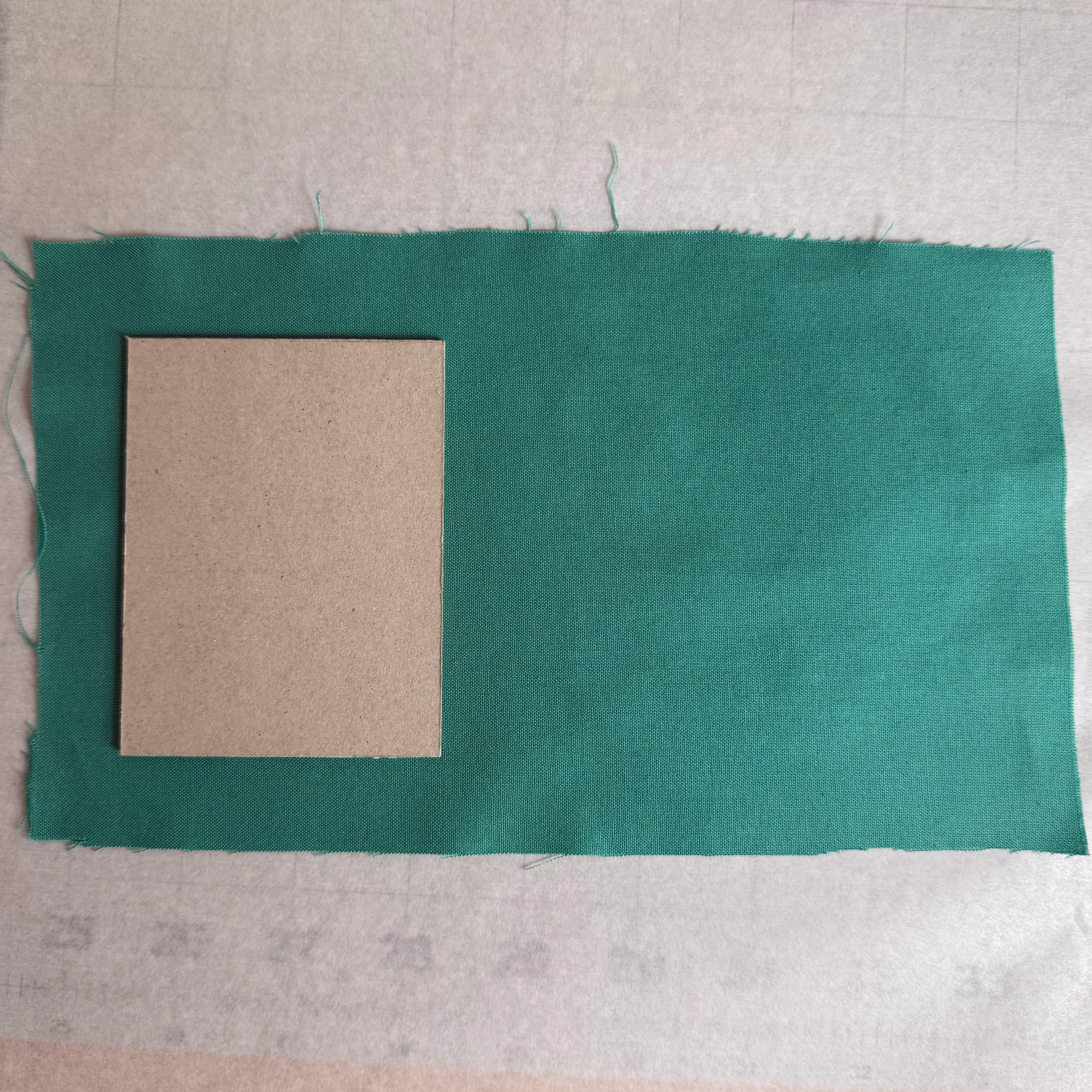

Place the exterior fabric wrong side up and arrange the chipboard pieces in the order shown by the project pattern.

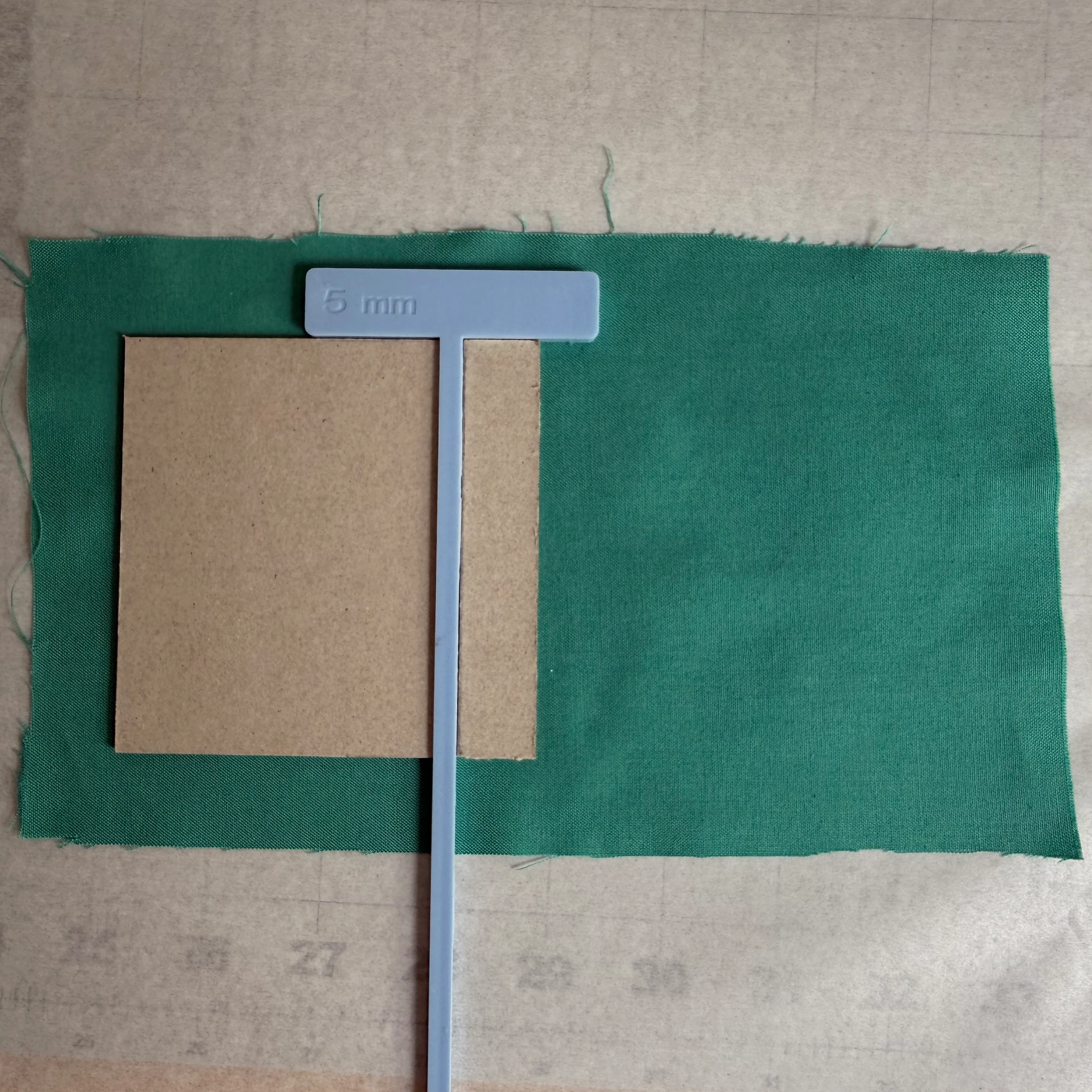

Use spacers or measuring guides to create the specified gap between each piece. These gaps form the hinges, so keep them straight and consistent from top to bottom.

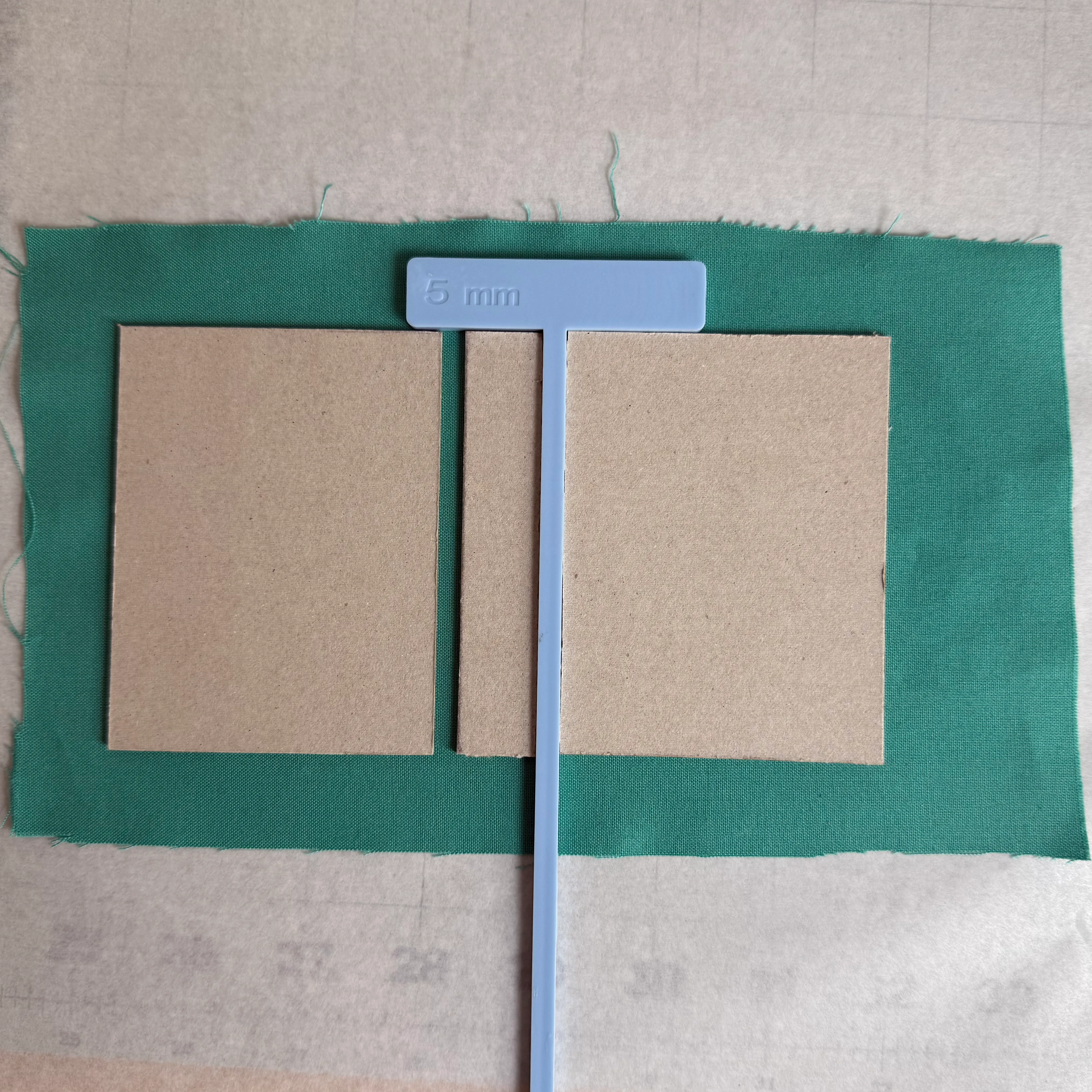

Glue each board to the fabric without disturbing the spacing. Smooth the fabric against the boards and check the alignment again before the glue begins to set.
Step 2

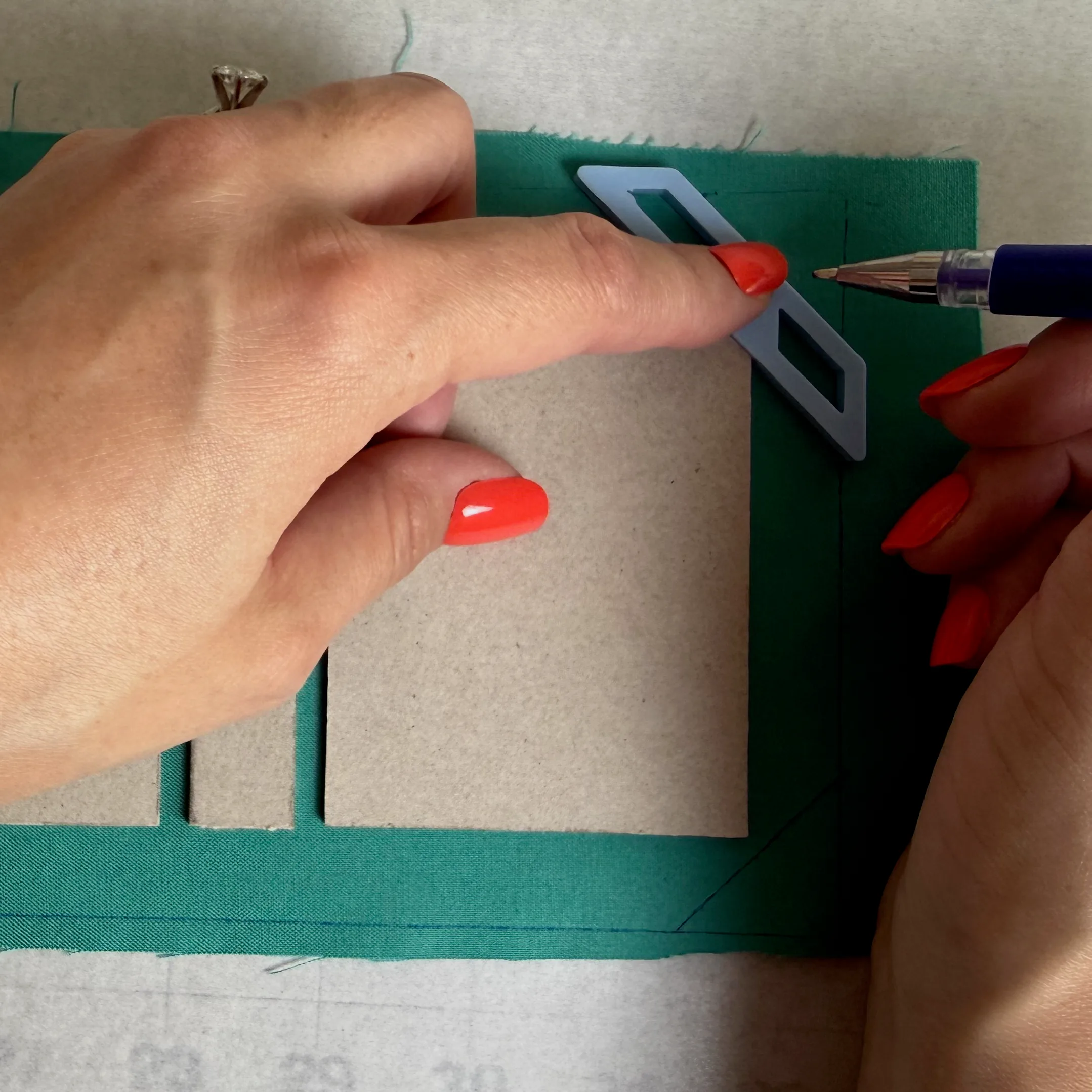

Mark and Trim the Exterior Fabric

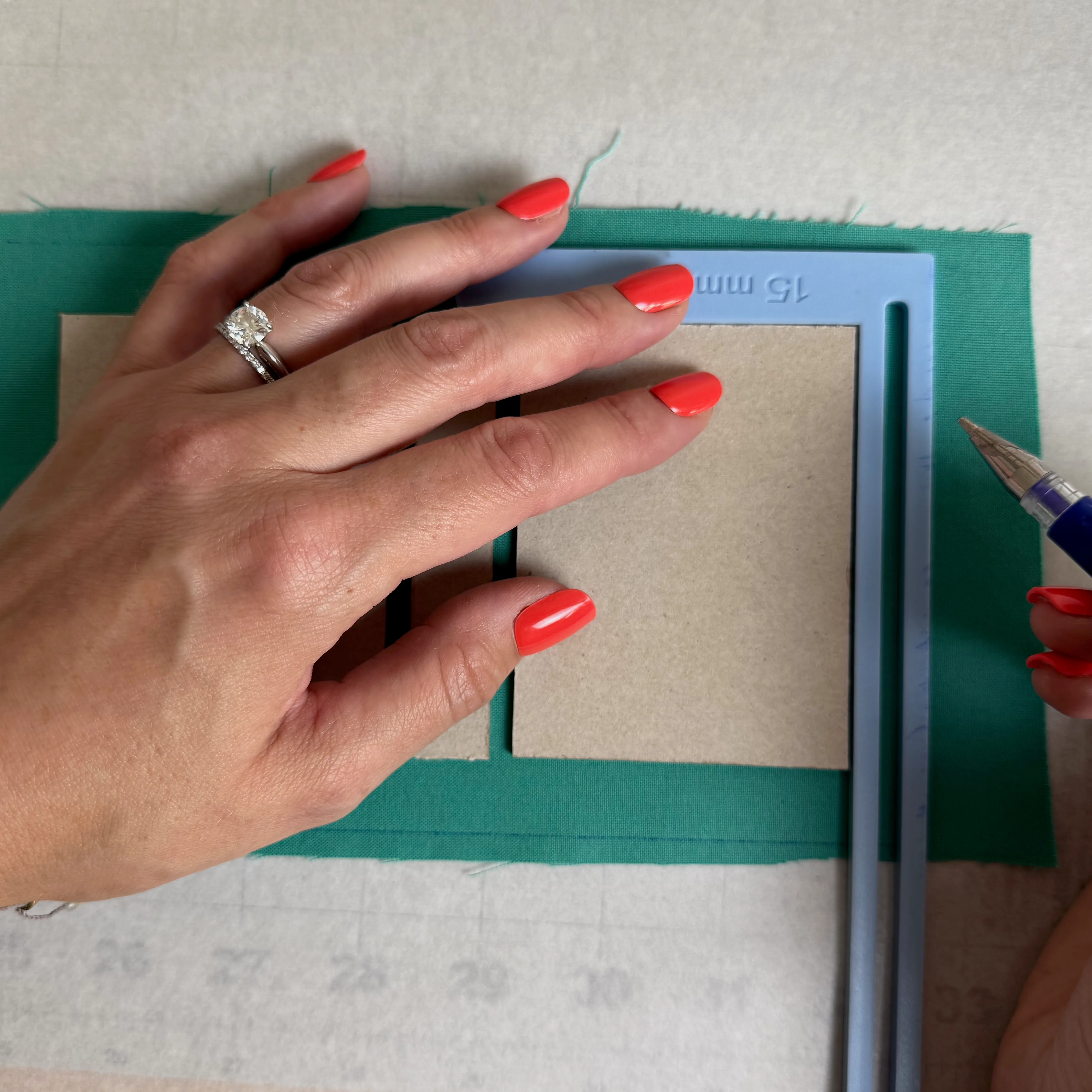

Mark the wrapping allowance around the outside of the assembled boards. Follow the pattern for any special cuts near the hinge gaps.

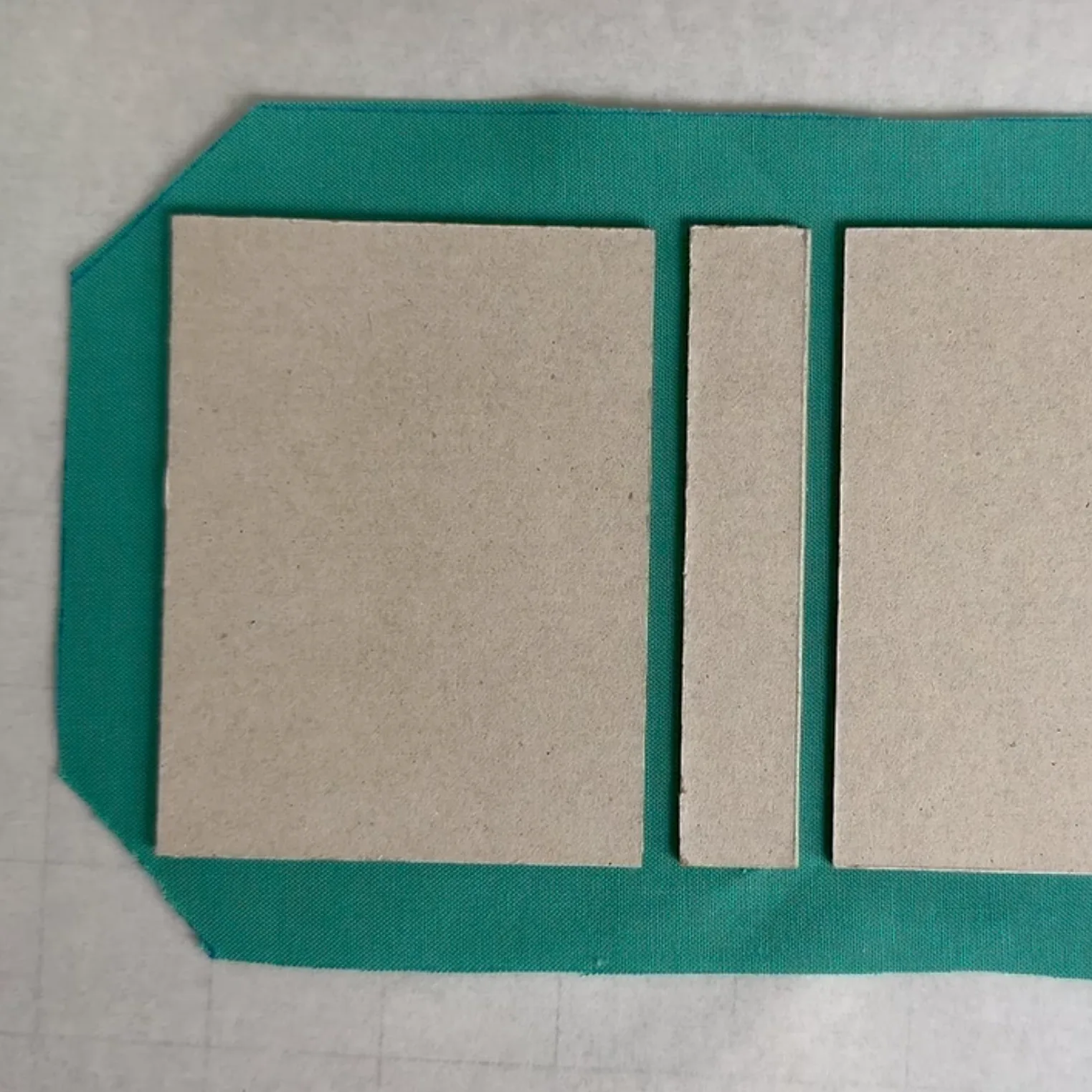

Trim the fabric along the marked lines. Clip the outside corners at an angle, leaving enough fabric to cover the chipboard corner without exposing it.
Keep cuts controlled and stop at the marked points so the fabric over the hinge areas remains intact.
Step 3

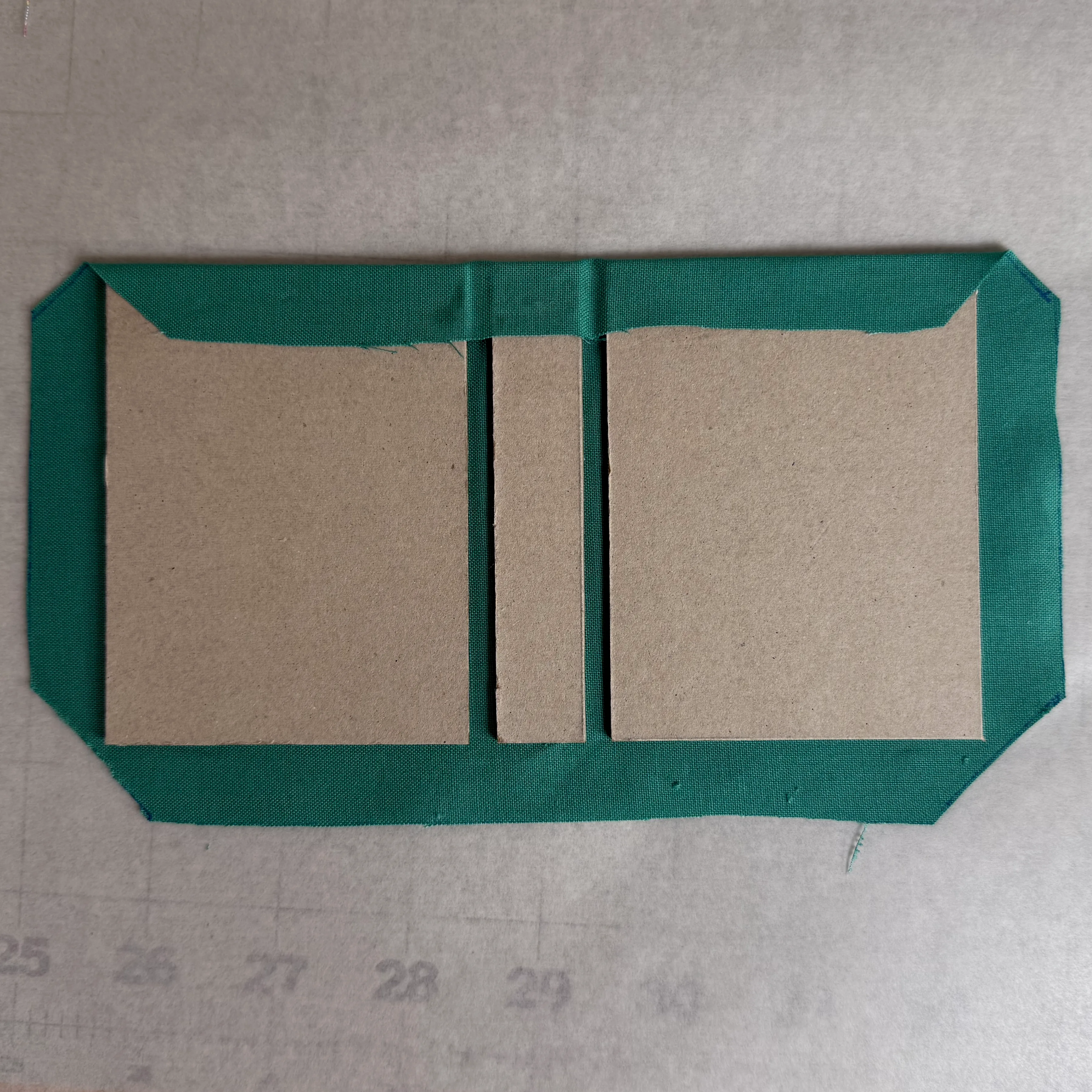

Wrap the Exterior Edges
Apply a thin, even layer of glue to the fabric allowances.

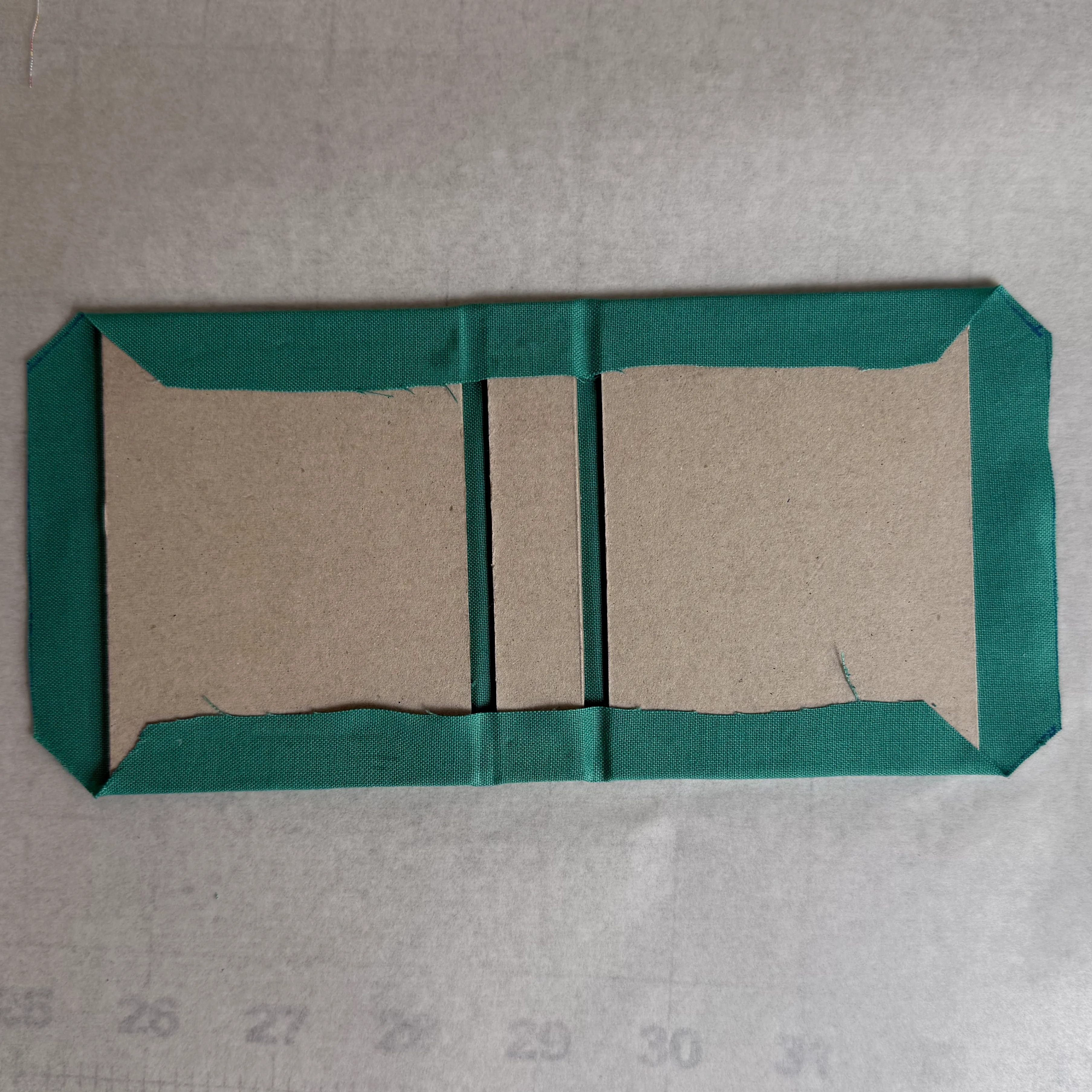

Wrap the long edges first, smoothing the fabric over the chipboard edges and across the hinge gaps. Use a bone folder to press the fabric into each gap without cutting or stretching it.

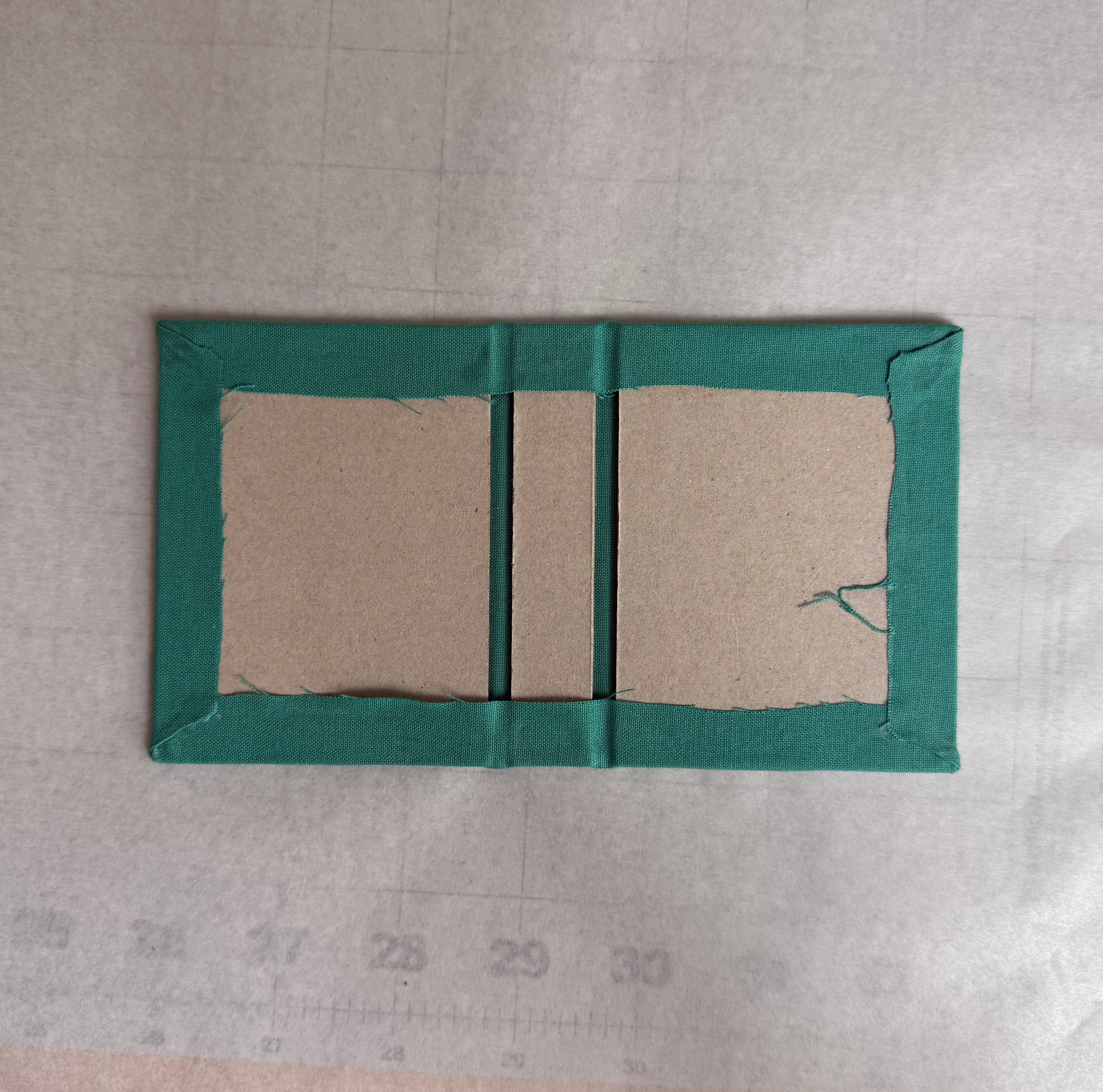

Tuck the corners and wrap the remaining ends. Check that every chipboard edge is covered and that the hinge gaps remain parallel.
Step 4
Add the Hinge Support

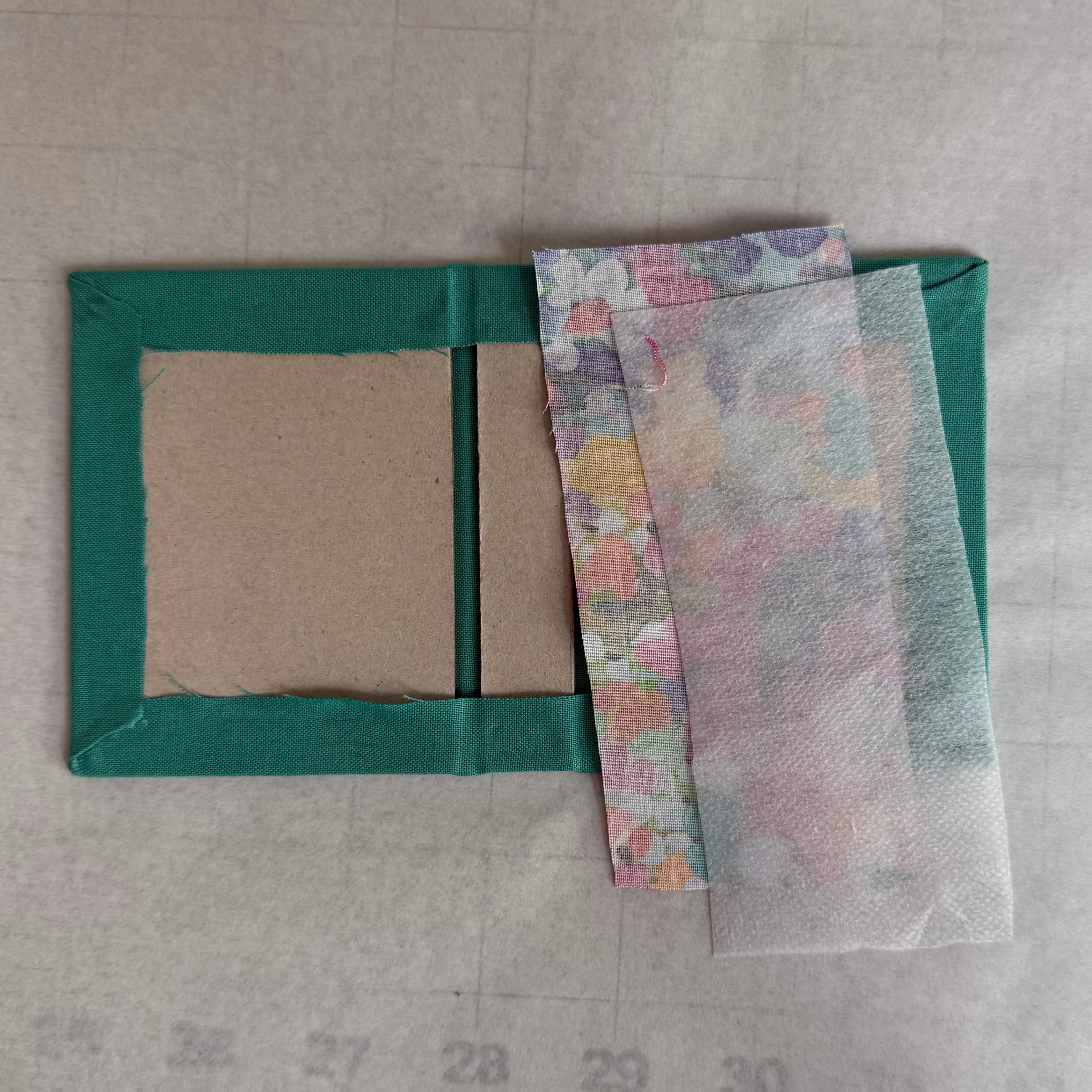

Cut the interior fabric and iron-on interfacing to the dimensions provided by the project pattern.
Fuse the interfacing to the wrong side of the interior fabric according to the manufacturer's heat and pressing instructions. Use a heat-safe surface and allow the fabric to cool completely.

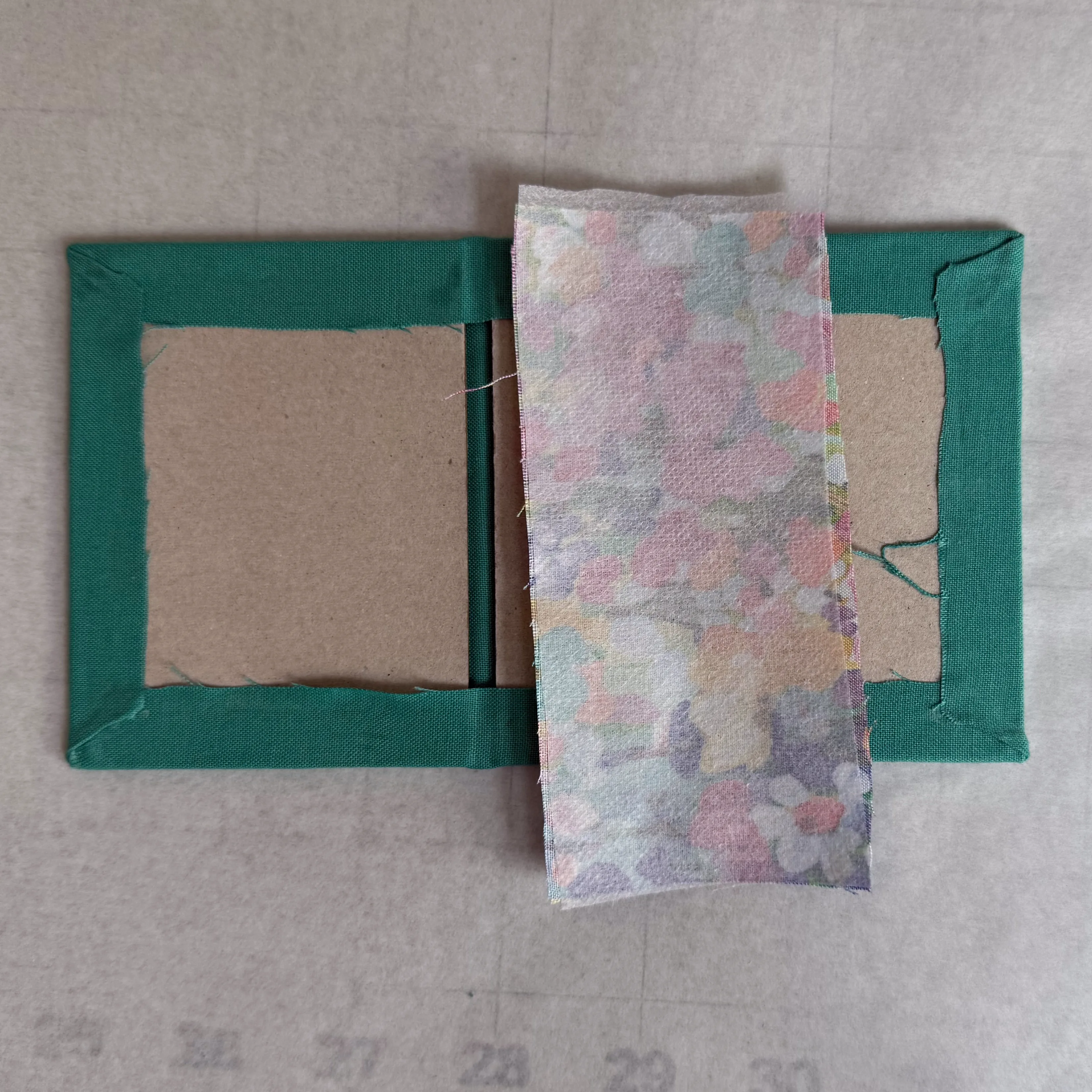

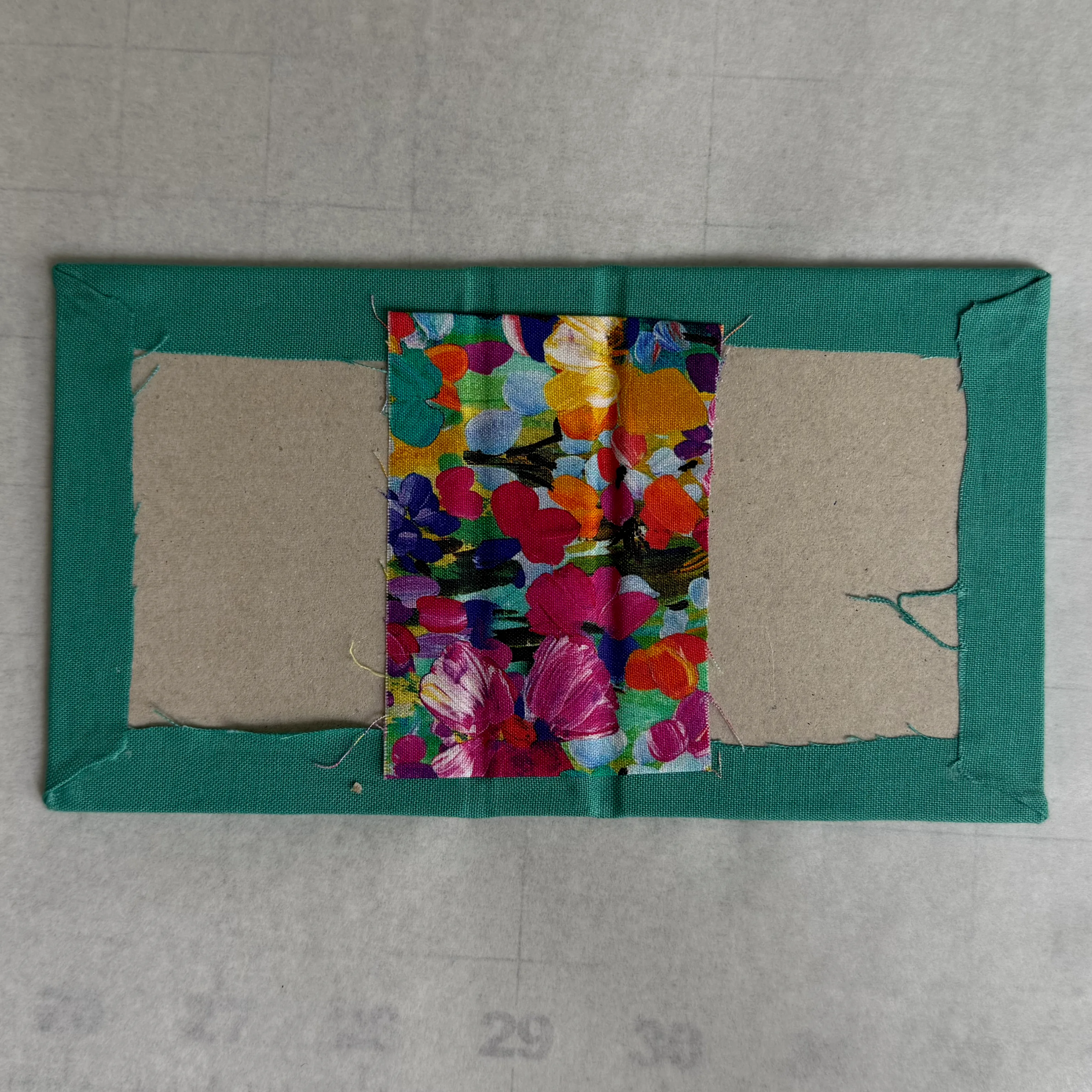

Position the reinforced fabric so it spans the chipboard pieces and hinge gaps. Check the fit and direction before applying glue.
Step 5

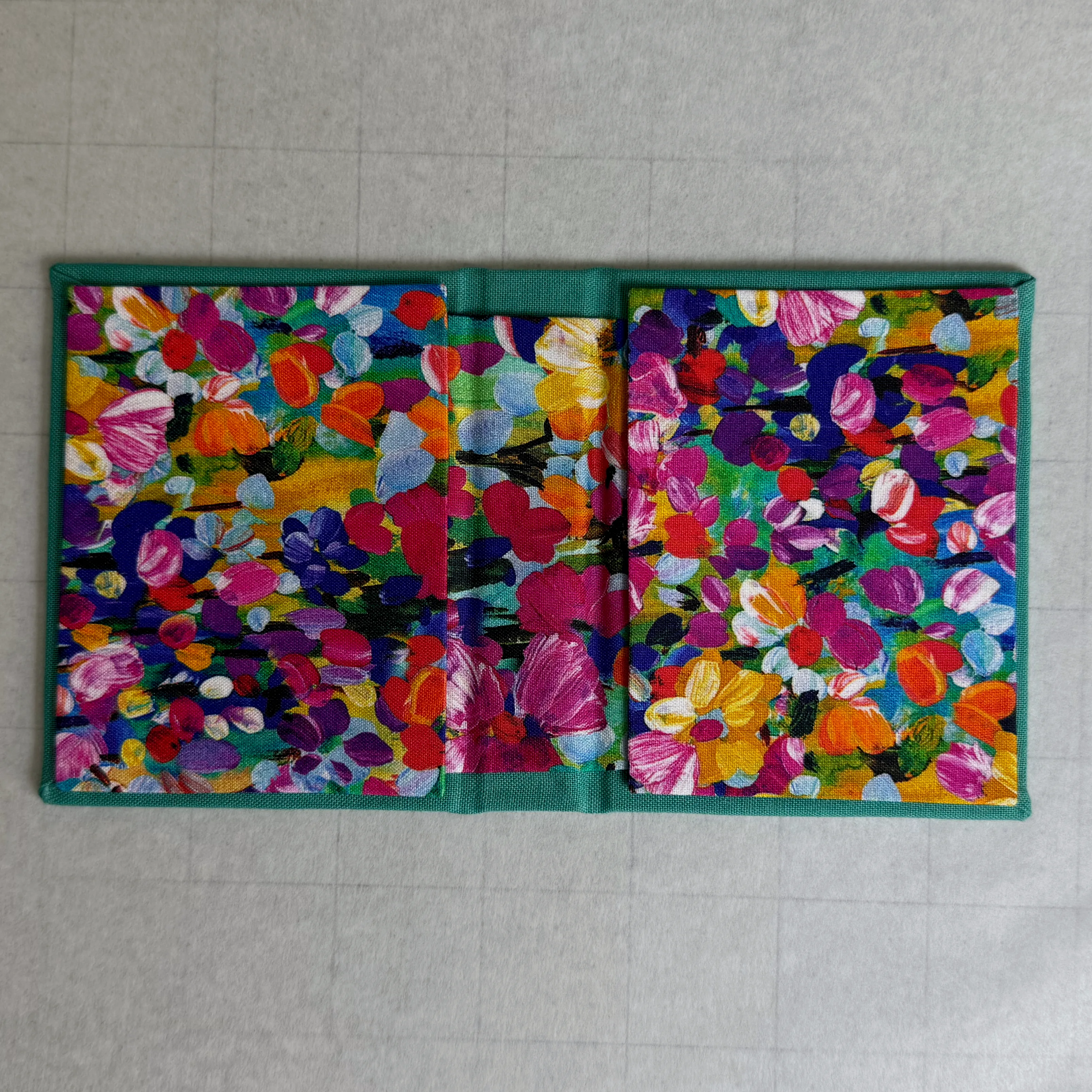

Install the Interior Lining
Spread a thin, even layer of glue over the back of the reinforced interior fabric.

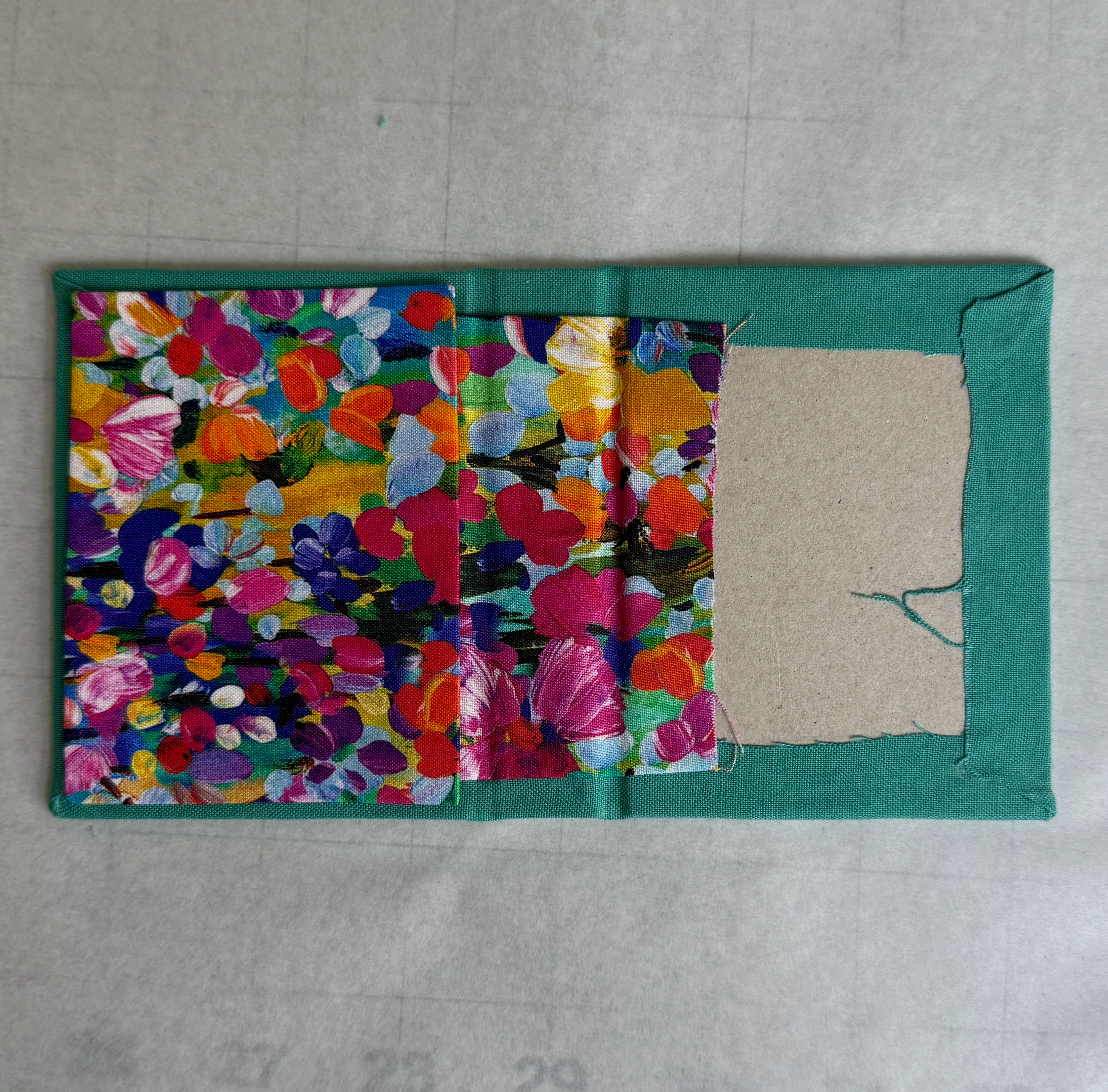

Place the lining onto the assembly and smooth it over each chipboard piece. Work gradually toward the hinge gaps to avoid trapping air or shifting the fabric.
Use a bone folder to press the lining gently into each gap. The lining should follow the hinge channels without pulling tight or wrinkling.
Step 6
Dry Under Weight
Place parchment paper or a silicone mat over the open assembly and press it under clean, flat weights while the glue dries.
Keep the assembly flat during this stage so the boards do not warp and the lining bonds evenly. Follow the adhesive manufacturer's drying time before removing the weights.
Step 7

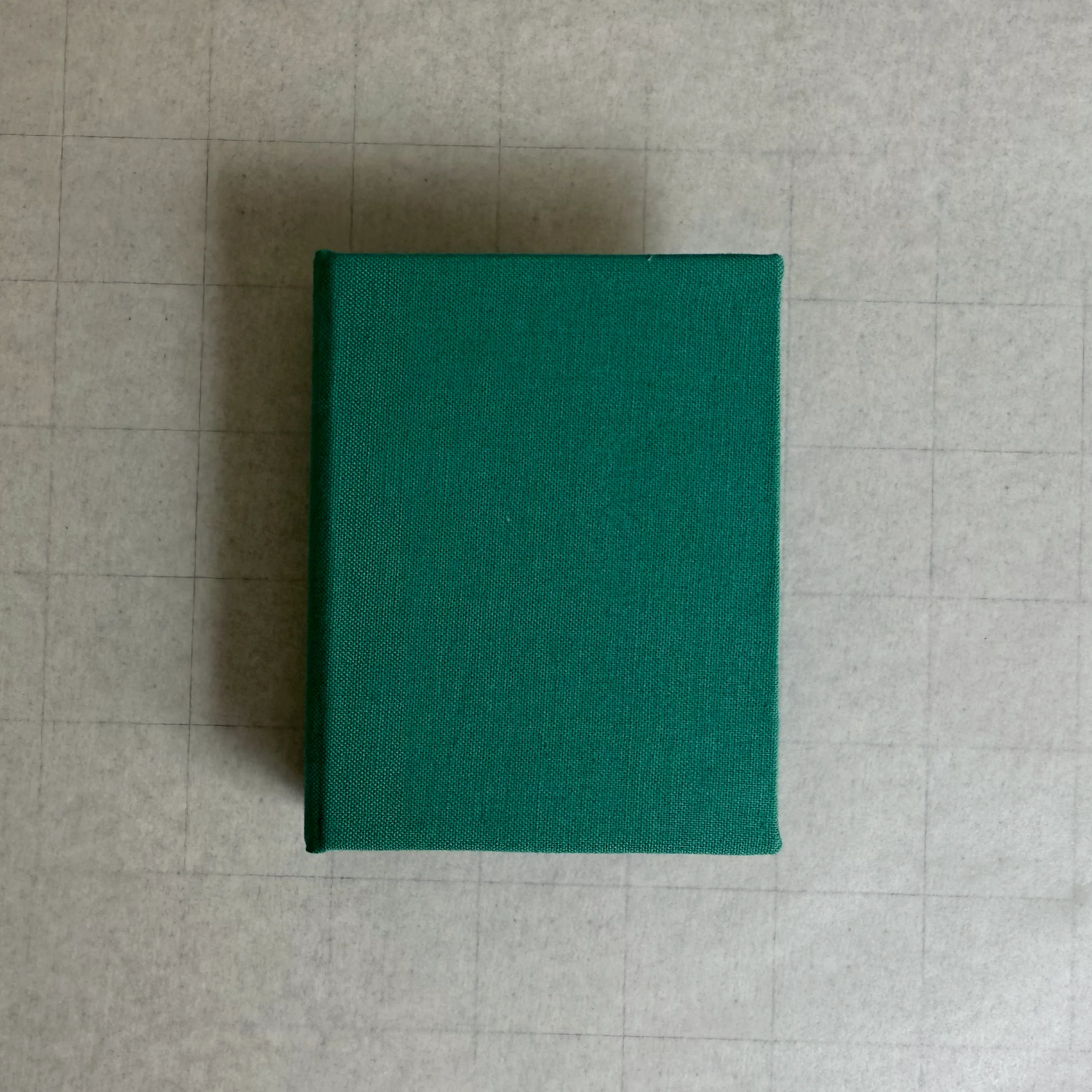

Test the Finished Hinge

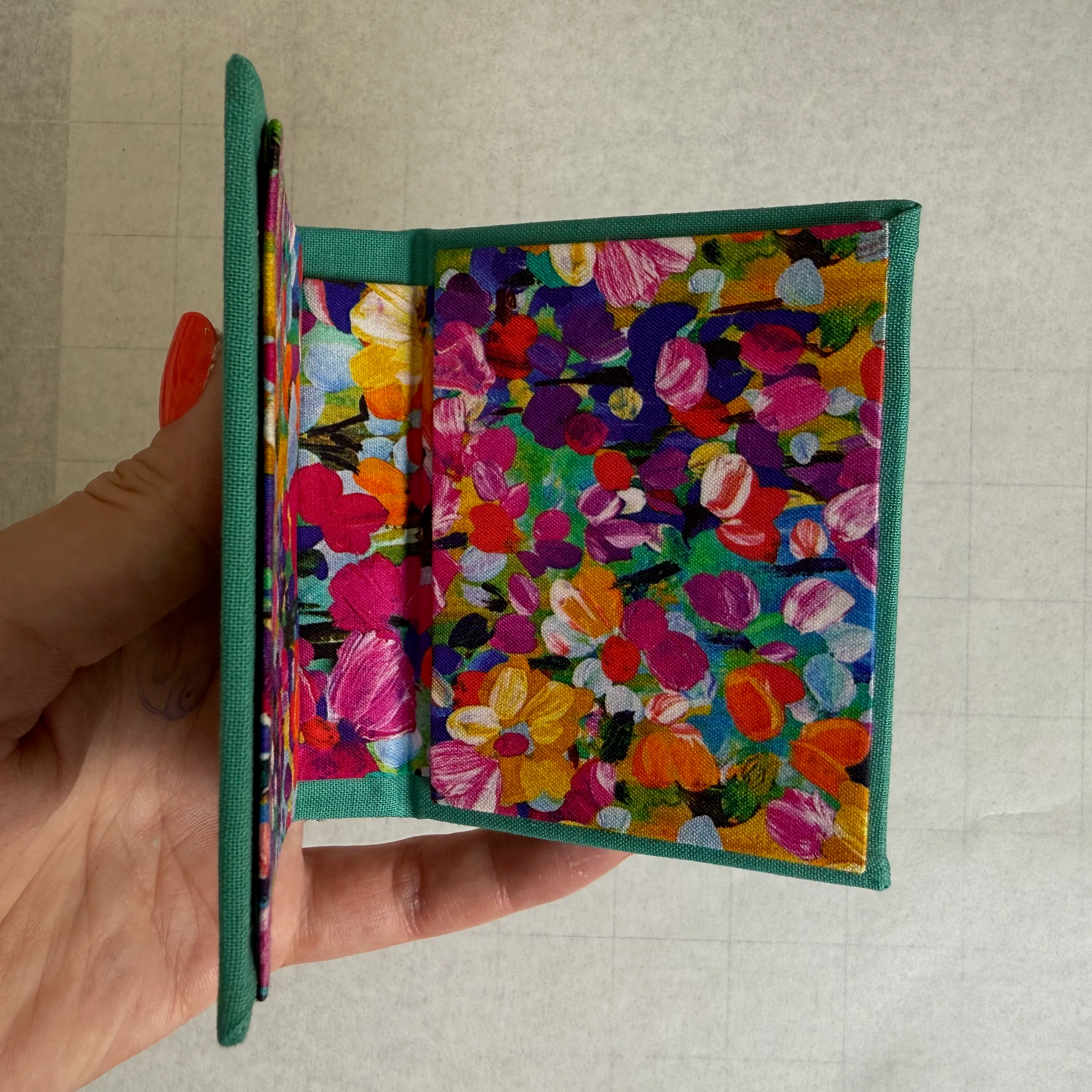

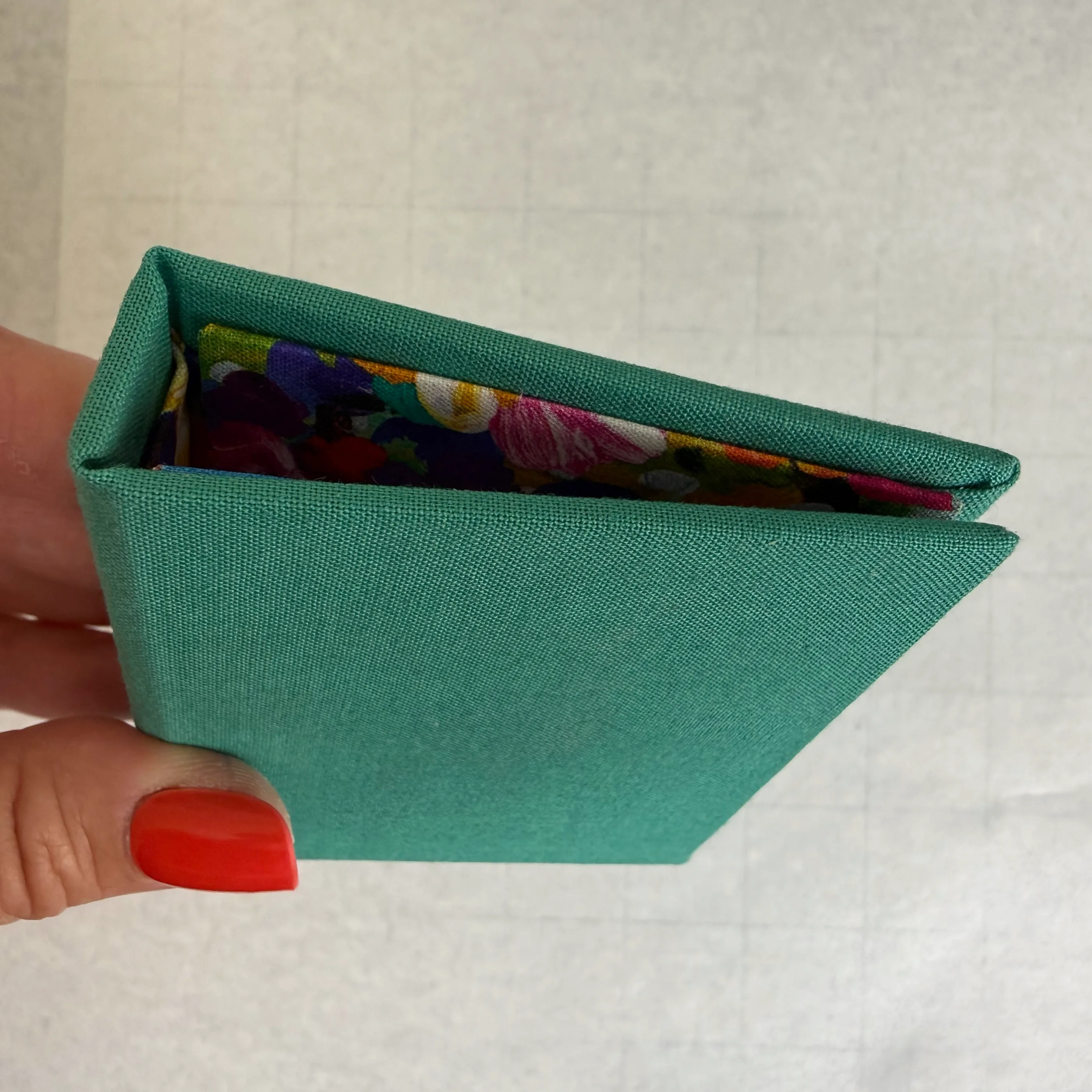

After the glue is dry, open and close each hinge slowly.
The boards should move smoothly without forcing the joint. Check that the fabric remains attached inside the gaps and that no edge lifts or pulls away.
If a hinge feels stiff, flex it gently several times rather than forcing it sharply. The completed piece should hold its shape while opening to the angle required by the project.
